Acton Controls, Inc. has developed and deployed state of the art solar-powered camera systems that are mounted on trailers for portability and rapid deployment. Our trailers are designed and manufactured to meet U.S. DOT standards. We are a licensed NHTSA trailer manufacturer #23541.

Each system is tailor designed to meet or exceed the average power and autonomy required for the customer’s application for at least 5 years. Starting with average and maximum load, our calculations take into account static latitude, minimum average hourly solar exposure, panel tilt angle, and solar panel and battery specifications. Included is panel and battery degradation over time, depth of discharge, etc. This is done to assure the customer will not experience any outages or failures during the life of the system.

Examples of CitiView Configurations Deployed:

Click here for citiview 2-panel brochure

Click here for Citiview 4-panel brochure

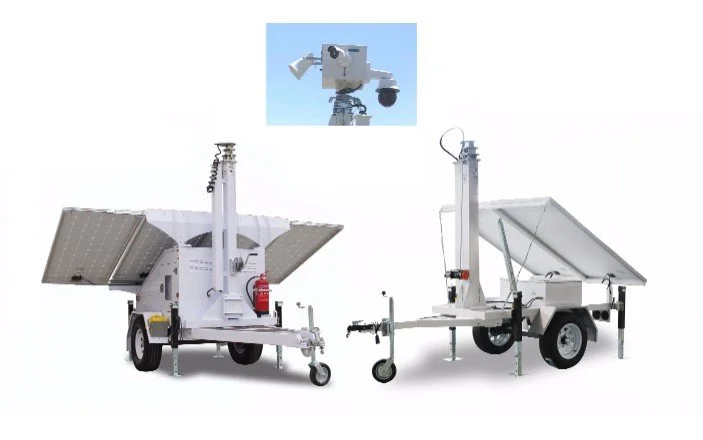

CST650A/B — 760W/870W Trailer

2 high-efficiency 380W or 435W solar panels
4 200Ah AGM gel-cel batteries
24VDC or 48VDC system voltage
115VAC 50A inverter with 3-prong plug
20’ to 30’ mast (manual, electric or hydraulic)
Single Axis trailer built to N.A. DOT standards

CST1200A/B — 1,520W/1,740 Trailer

4 High-efficiency 380W or 435W solar panels
10 150Ah or 8 200Ah AGM batteries
24VDC or 48VDC system voltage
115VAC 50A inverter with 3-prong plug
20’ to 30’ mast (manual, electric or hydraulic)
Single Axis trailer built to N.A. DOT standards

Camera Box

Rotates 360 degrees (lockable)
Up to 8 cameras of any mix
Multiple PTZ or panoramic cameras
ALPR cameras
Radar-based speed monitor system
Infrared (night vision) cameras, etc.

Control and Communications:

4G-LTE or 5G cellular modem with GPS
MIMO antenna mounted on camera box
USA-DOT VIN number attached
Fully adjustable solar panel tilt angle
Adjustable stabilizers on all 4 corners

Options:

Customer specified cellular modem
WIFI antenna
Electrically driven camera box rotation
Manual, electric, or hydraulic mast lift
Speaker for “talk down”

Facts About Solar-Powered Surveillance Systems:
Advancements in technology have led to the development of various surveillance solutions, including solar-powered surveillance systems. Incorporating solar power into surveillance equipment offers several benefits; however, there are also some drawbacks to consider. Let's explore the pros and cons of using solar-powered surveillance systems:
Pros:
1. Energy efficiency: One of the primary advantages of solar-powered surveillance systems is their energy efficiency. By harnessing sunlight, these systems eliminate or significantly reduce the need for external power sources, reducing operational costs.
2. Environmental friendliness: Solar power is a clean and renewable energy source, making solar-powered surveillance systems environmentally friendly. Using solar energy helps reduce carbon emissions, making it an eco-conscious choice for organizations aiming to minimize their carbon footprint.
3. Remote and off-grid capability: Solar-powered surveillance systems are particularly beneficial in remote areas or off-grid locations where access to a traditional power supply is challenging or costly. These systems can be set up in remote construction sites, wildlife reserves, or distant infrastructure facilities.
4. Cost savings: Once installed, solar-powered surveillance systems can provide long-term cost savings. By relying on solar energy, businesses can reduce or eliminate ongoing electricity expenses associated with powering traditional surveillance systems.
5. Flexibility and versatility: Solar-powered surveillance systems can be easily deployed and relocated as needed. Their wireless nature, combined with solar panels' ability to capture sunlight from various angles, allows them to be positioned and adjusted for optimal monitoring without the need for extensive wiring.
